Old controller is gone
The original controller failed, was removed, or is otherwise unavailable, but a usable controller backup still exists.
Blackwire Omada Recovery Migrator
Blackwire Omada Recovery Migrator — Offline Controller Recovery & Migration
Omada already has Site Migration for normal supported online moves. Blackwire Omada Recovery Migrator is for the harder cases: the old controller is unavailable, failed, or cannot participate; only a usable backup remains; the source and destination do not have a workable native path; or the normal migration workflow cannot complete the job.
The current build works from a saved source controller or Fusion configuration together with a fresh backup from the actual destination Fusion. The source controller does not need to be online for the recovery workflow when a usable source backup is available.
Blackwire reviews compatibility, protects destination-owned Fusion state, generates a destination-specific restore, and keeps validation in front of the technician before the file is used on hardware. Beta has not started and there is no public release date.
View recovery workflowLate Alpha / In Progress
Native migration firstUse Omada Site Migration for normal supported online moves
Offline / recovery casesBuilt for backups, failed controllers, and unavailable sources

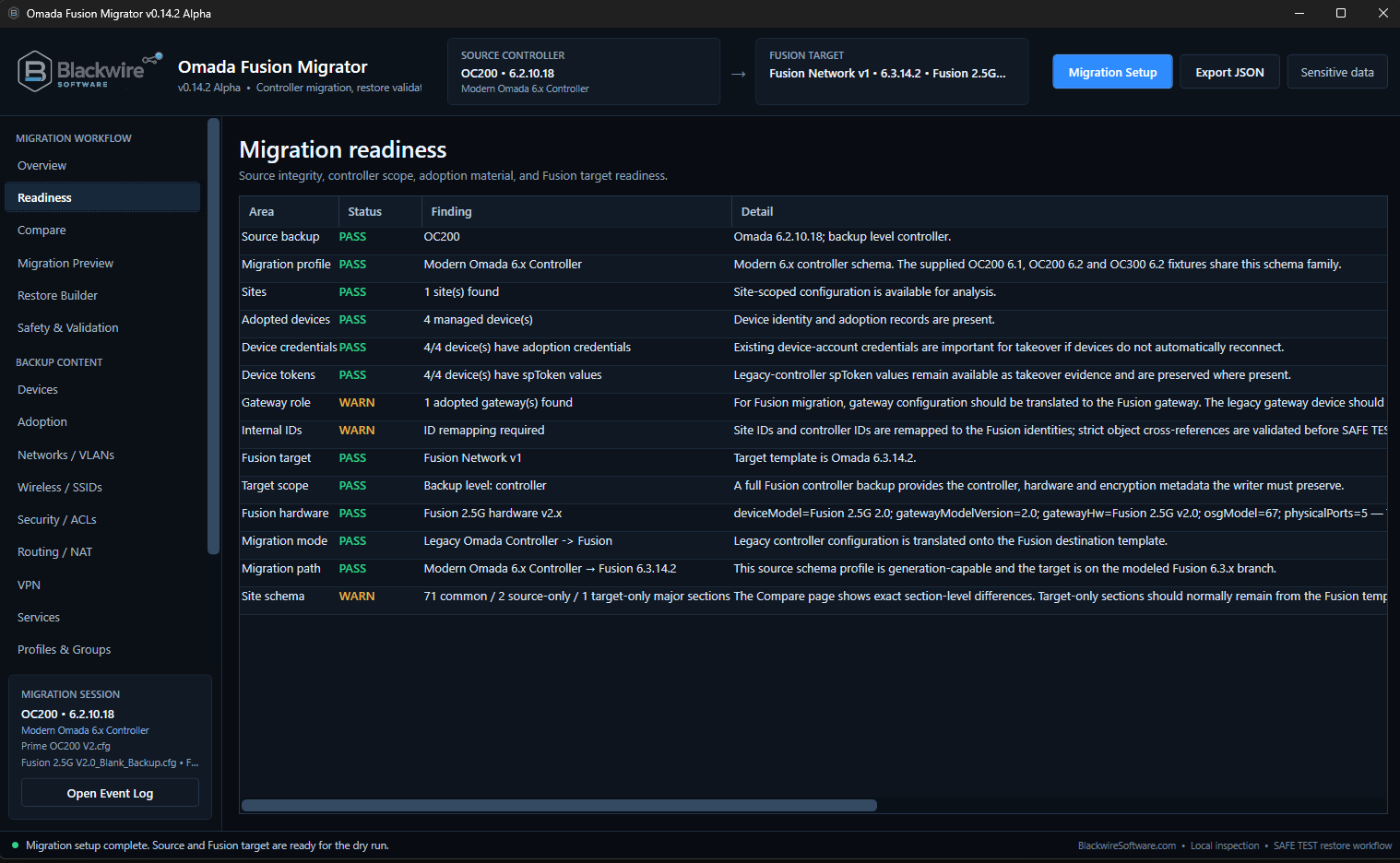

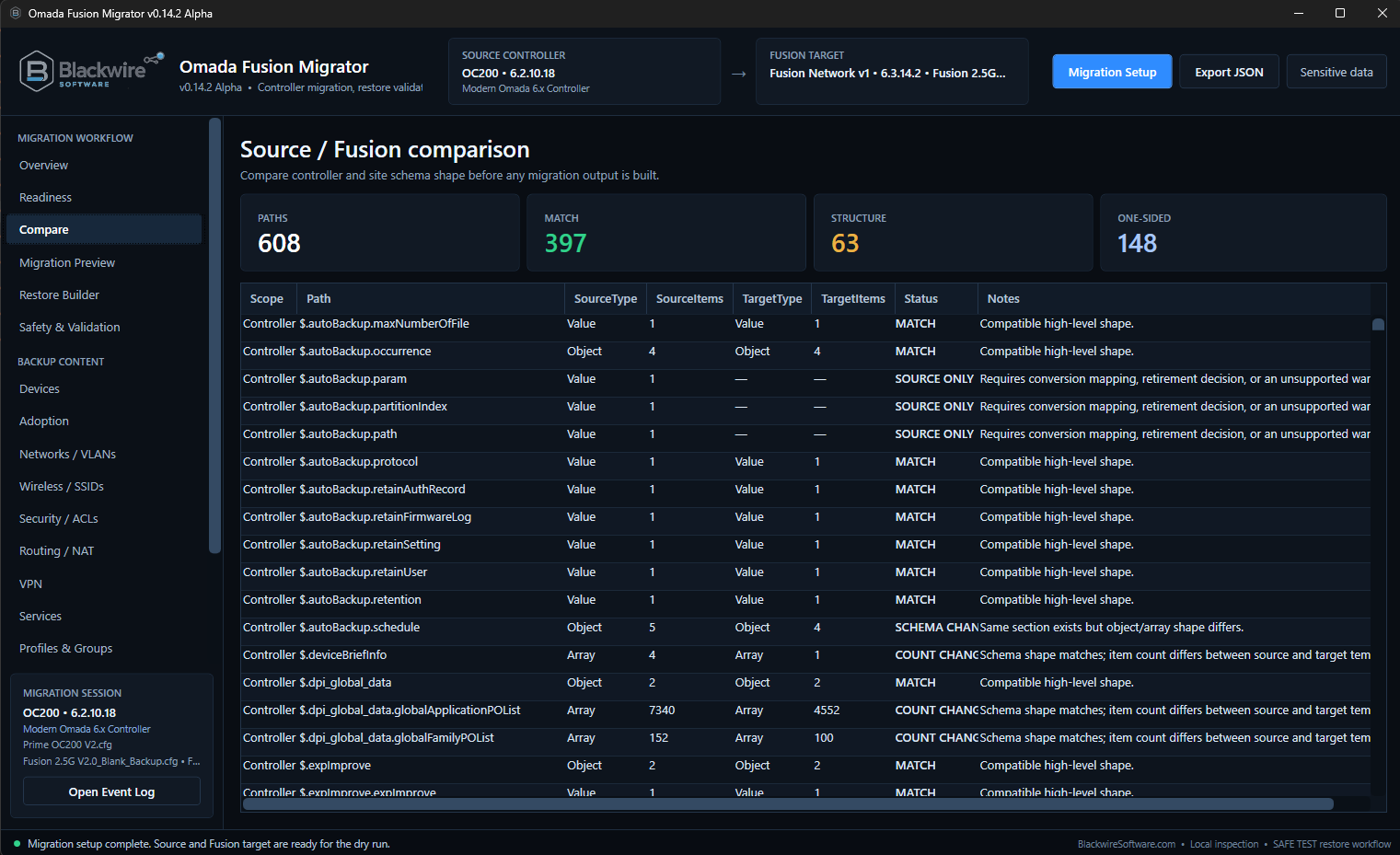

Compatibility reviewSource and destination differences are checked before generation
Real hardware restoresOC200, OC220, OC300, and Fusion generation testing
Where Blackwire fits
It is not meant to replace Omada's normal Site Migration workflow.
If the source controller is online, supported, and able to complete a normal Site Migration, use the native Omada process. Blackwire is being developed for the cases that are left over when that path is not available or not enough.
No workable live path
The source and destination combination does not have a native online migration path that can complete the move the way the technician needs.
Recovery needs review
The technician needs to inspect what can be carried forward, what belongs to the new Fusion, and what needs to be held or handled manually.
Destination must stay itself
The replacement Fusion keeps ownership of its hardware identity, ports, controller login, and other target-specific state while the recoverable source configuration is brought forward.
Simple rule: if Omada's supported Site Migration works for the job, use it. Blackwire is for recovery, offline, and compatibility cases where the old controller cannot participate or the native path cannot finish the move.
What it is
Recover the source configuration from backup and build it for the Fusion that will actually receive it.
Blackwire treats this as a backup-to-destination recovery job, not as a second version of a normal online controller handoff.

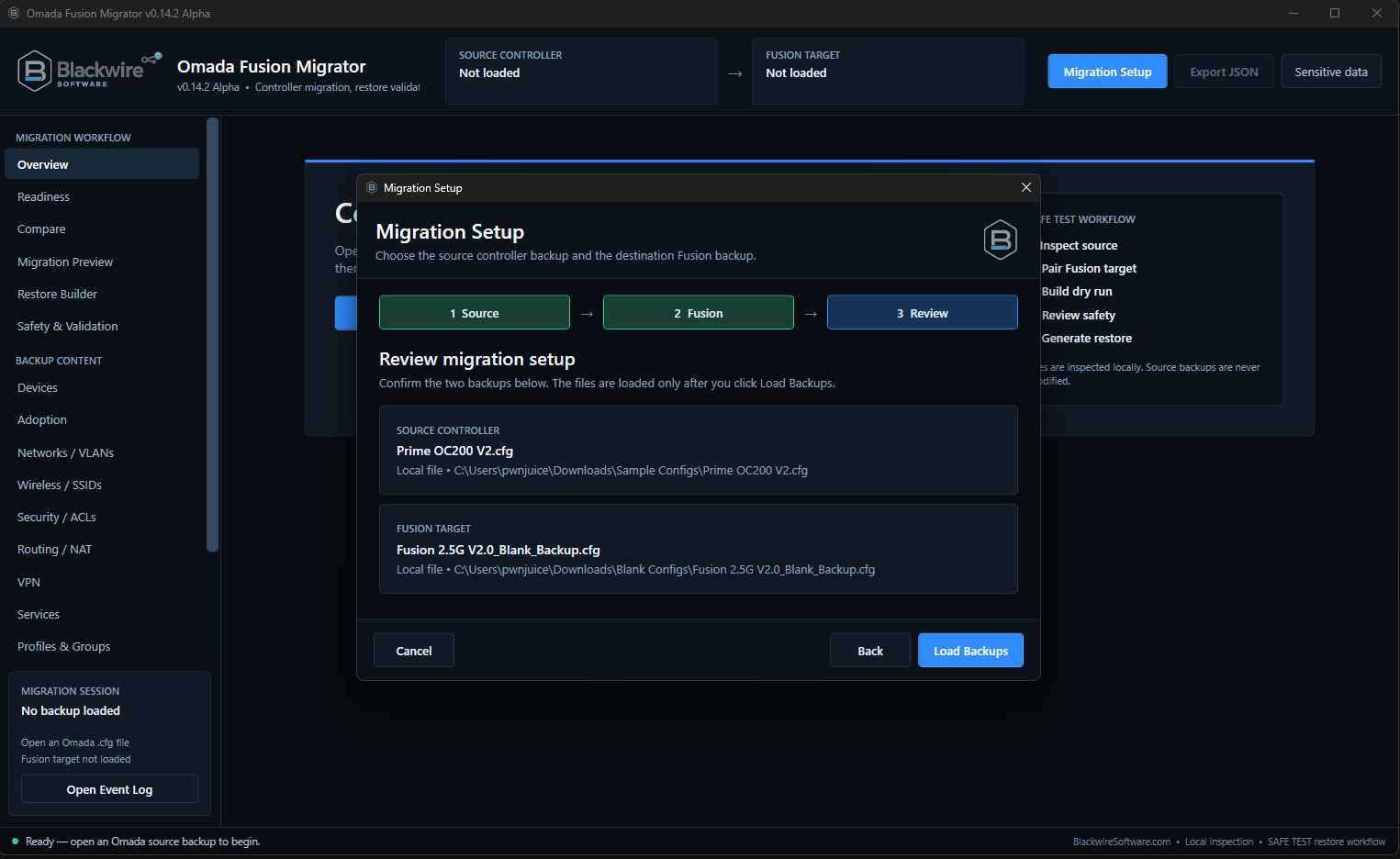

The technician loads the saved source controller or Fusion configuration and pairs it with a fresh backup from the actual destination Fusion.

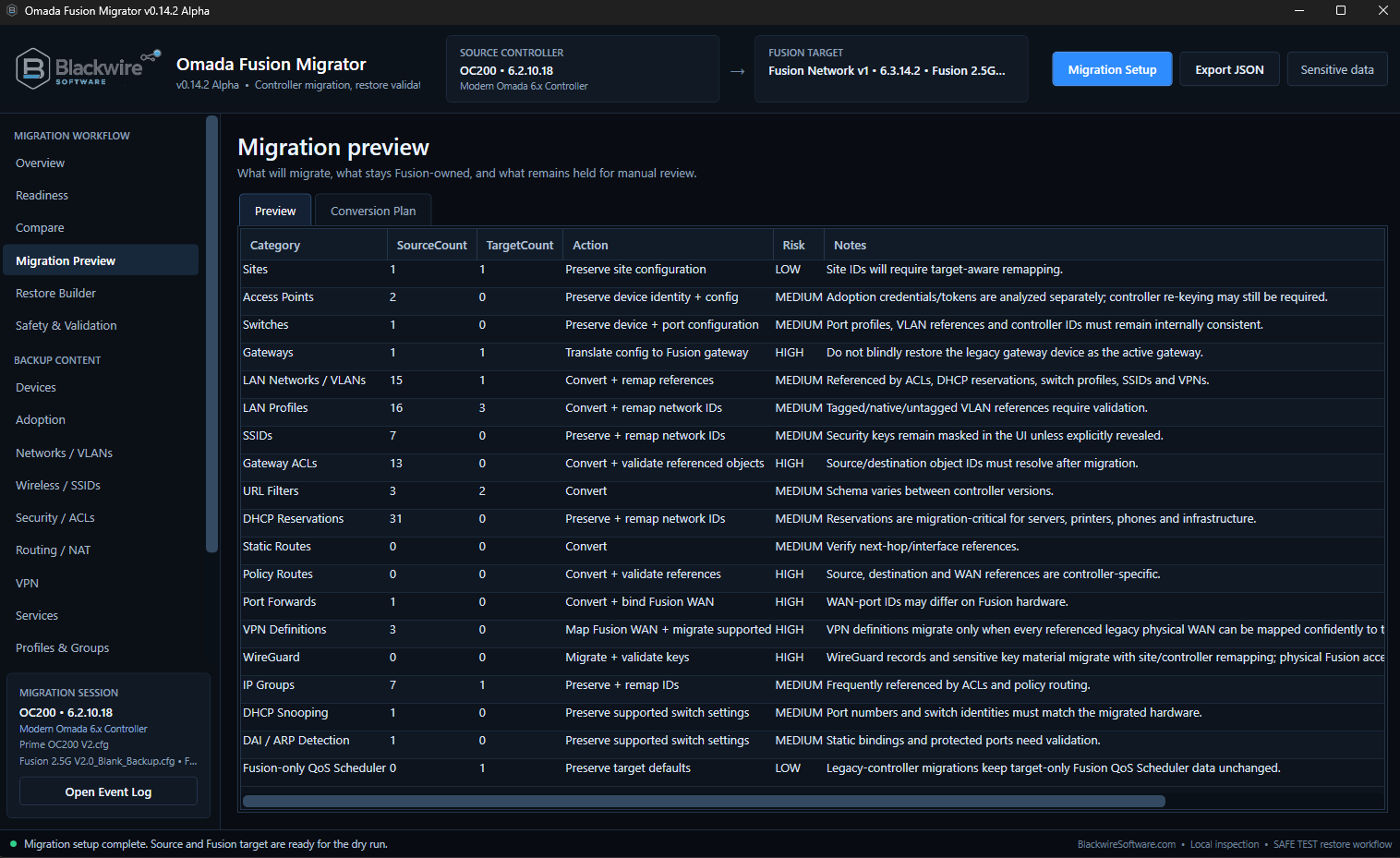

From there, Blackwire reviews compatibility, shows what can be recovered, identifies destination-owned information that must stay with the replacement Fusion, and validates the result before a restore is saved.
This is especially useful when the original controller is no longer available to log into or participate in a live migration. Fusion-to-Fusion recovery and compatibility work is active too, including moves between different Fusion hardware generations.
Hardware-tested recovery results
The test matrix is built around real restores, not just generated files.
These results show where the offline/destination-specific approach has survived real Fusion restores. They are combination-specific development results, not a claim that every firmware version, backup, or network design is supported.
| Recovery / migration path | Status | What the hardware test proved |
|---|---|---|
| OC200 V1 → Fusion 2.5G V2-family | Hardware validated | Controller configuration restored successfully from backup. The destination Fusion kept its own hardware identity and local web login. Managed devices still require post-restore trust to be re-established. |
| OC200 V2 → Fusion 2.5G V1-family | Hardware validated | Controller configuration restored successfully with the destination Fusion remaining owner of its hardware identity and local login. Managed devices still require re-adoption/takeover. |
| OC220 6.2.14.12 → Fusion 2.5G V1-family 6.3.14.1 | Hardware validated | A complete OC220 controller configuration restored successfully to Fusion V1-family hardware while preserving destination-owned Fusion identity and login state. |
| OC220 6.2.14.12 → Fusion 2.5G V2-family 6.3.14.2 | Hardware validated | The same complete OC220 source backup also restored successfully to Fusion V2-family hardware with the tested source configuration retained. |
| OC300 6.2.14.11 → Fusion 2.5G V1-family 6.3.14.1 | Hardware validated | Controller configuration restored successfully. The destination Fusion remained owner of its hardware identity and local web login, while managed APs and switches still require post-restore trust to be re-established. |
| OC300 6.2.14.11 → Fusion 2.5G V2-family 6.3.14.2 | Hardware validated | Physical restore testing successfully moved the tested OC300 configuration to Fusion V2-family hardware, including ACL, WAN, VPN, DDNS, routing, and other validated configuration areas. Managed devices still require post-restore re-adoption/takeover. |
| Fusion 2.5G V1-family → V2-family | Hardware validated | Configuration migration between Fusion hardware generations restored successfully. Native post-restore device takeover has also been physically proven in Fusion-to-Fusion testing. |
A path is not treated as proven just because the generated file looks correct. Hardware validation means the migration survived an actual Fusion restore in the tested setup.
Hardware Validated
OC200 → Fusion V1-family and V2-family
Physical testing has successfully recovered OC200 configurations across both Fusion 2.5G hardware families in the current test program: OC200 V1 → Fusion V2-family and OC200 V2 → Fusion V1-family.
In both tests, the controller configuration restored successfully while the destination Fusion kept ownership of its own hardware identity and local web login. The source OC administrator was not transplanted as the Fusion login.
What the OC200 hardware tests proved
- OC200 V1 → Fusion V2-family restored successfully
- OC200 V2 → Fusion V1-family restored successfully
- Destination Fusion hardware identity remained target-owned
- Destination Fusion local login remained in use after restore
- Controller configuration recovery and managed-device trust are separate
Existing APs and switches still require post-restore trust to be re-established.
Hardware Validated
OC220 → Fusion V1-family and V2-family
Physical testing has successfully recovered a complete OC220 6.2.14.12 controller configuration onto both Fusion 2.5G hardware families in the current test program.
In both tests, the source configuration survived while the destination Fusion retained ownership of its own controller identity, site identity, built-in Fusion gateway, local administrator/IAM state, and Fusion-specific hardware information.
What was in the OC220 test source
- 8 LAN/VLAN networks
- 7 LAN profiles
- 6 wireless SSIDs
- 3 IP groups
- 7 ACLs
- 2 VPN definitions and 1 VPN user
- 2 port-forward rules
- 11 DHCP reservations
- 4 AP records and 1 switch record
Both generated restores retained those tested configuration counts.
Hardware Validated
OC300 → Fusion V1-family and V2-family
Physical testing has successfully recovered an OC300 6.2.14.11 controller configuration onto both Fusion 2.5G hardware families in the current test program.
The tested configuration restored while the destination Fusion remained owner of its own hardware/controller identity, built-in Fusion gateway, local login, and Fusion-specific hardware information. Managed-device trust remains a separate post-restore step.
What was in the main OC300 test source
- 3 WAN connections
- 13 LAN/VLAN networks
- 4 DHCP reservations
- 5 wireless SSIDs
- 10 ACLs
- 5 VPN definitions, including WireGuard and SSL VPN testing
- 2 DDNS records
- 2 port-forward rules
- 1 policy-routing rule
- 10 AP records and 6 switch records
The hardware-tested restore retained the tested recovered configuration while keeping the Fusion hardware identity intact.
Configuration recovery and device trust are separate. Across the tested OC200, OC220, and OC300 → Fusion paths, the controller configuration restored successfully while existing APs and switches still require the destination controller to re-establish trust after restore. Blackwire treats that as a separate post-restore takeover step, not as a failed recovery.
Validation snapshot
OC200, OC220, and OC300 now have physical Fusion restore results.
The test matrix includes successful restore evidence from OC200, OC220, OC300, both Fusion 2.5G hardware families, and Fusion generation-to-generation recovery/migration.
HARDWARE VALIDATEDOC200 V1 → Fusion V2, OC200 V2 → Fusion V1, OC220 → Fusion V1, OC220 → Fusion V2, OC300 → Fusion V1, OC300 → Fusion V2, and Fusion V1 → Fusion V2.
COMBINATION-SPECIFICThese results apply to the hardware, firmware, backups, and configurations that were physically tested. They do not mean every OC200, OC220, OC300, or Fusion combination is universally supported.
STILL ACTIVE TESTINGAutomated OC→Fusion takeover, more firmware/hardware combinations, downgrade/cross-version work, unusual WAN layouts, additional VPN/ACL cases, and larger environments.
Current development progress
What the current recovery build is actively carrying forward and validating.
Coverage is broad now, but it is still conditional. Blackwire is designed to hold or block a setting when it cannot safely represent it on the selected destination instead of silently guessing.
- LANs and VLANs
- DHCP configuration
- Wireless networks and SSIDs

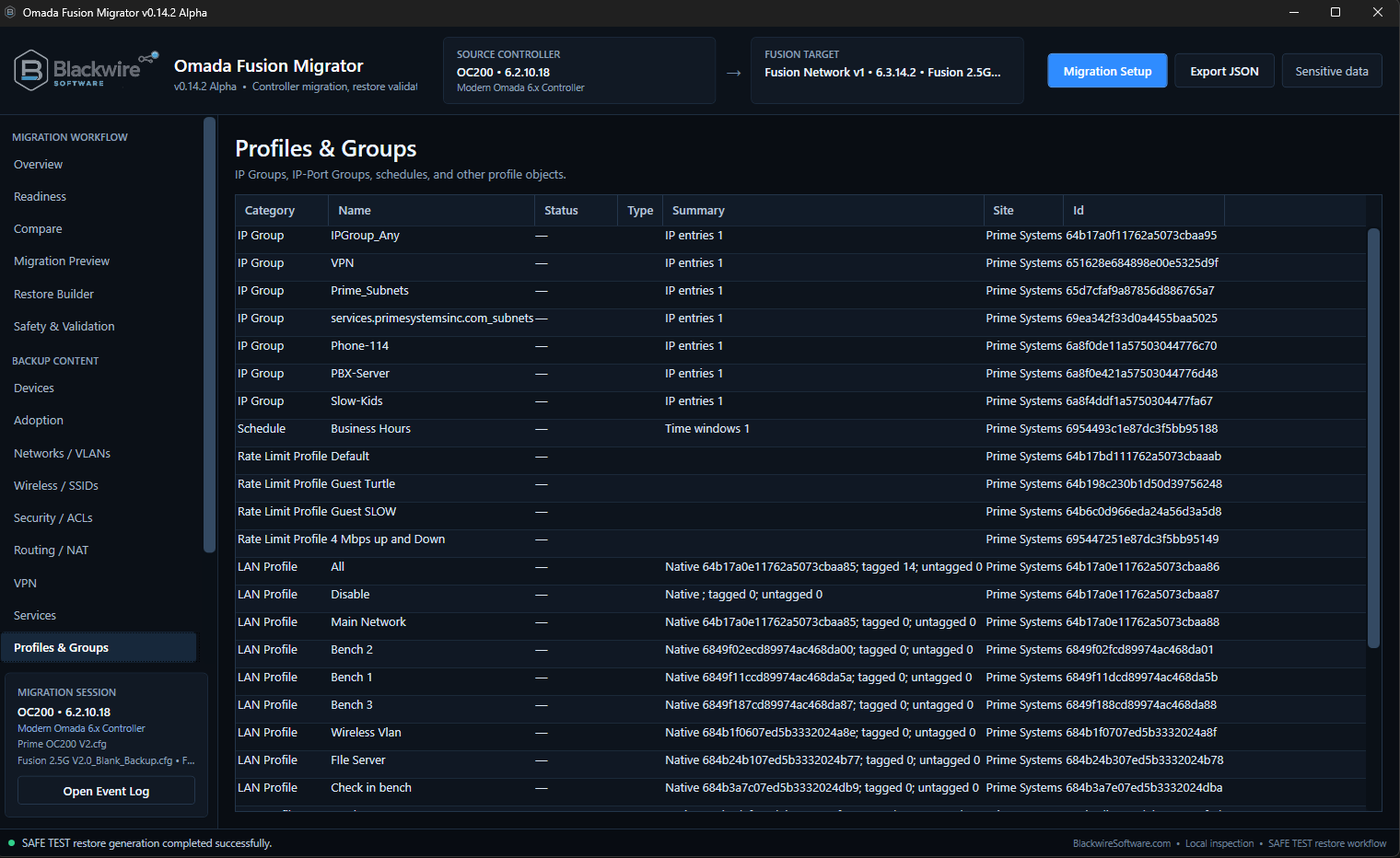

- Network and switch profiles
- Managed AP and switch records
- IP groups

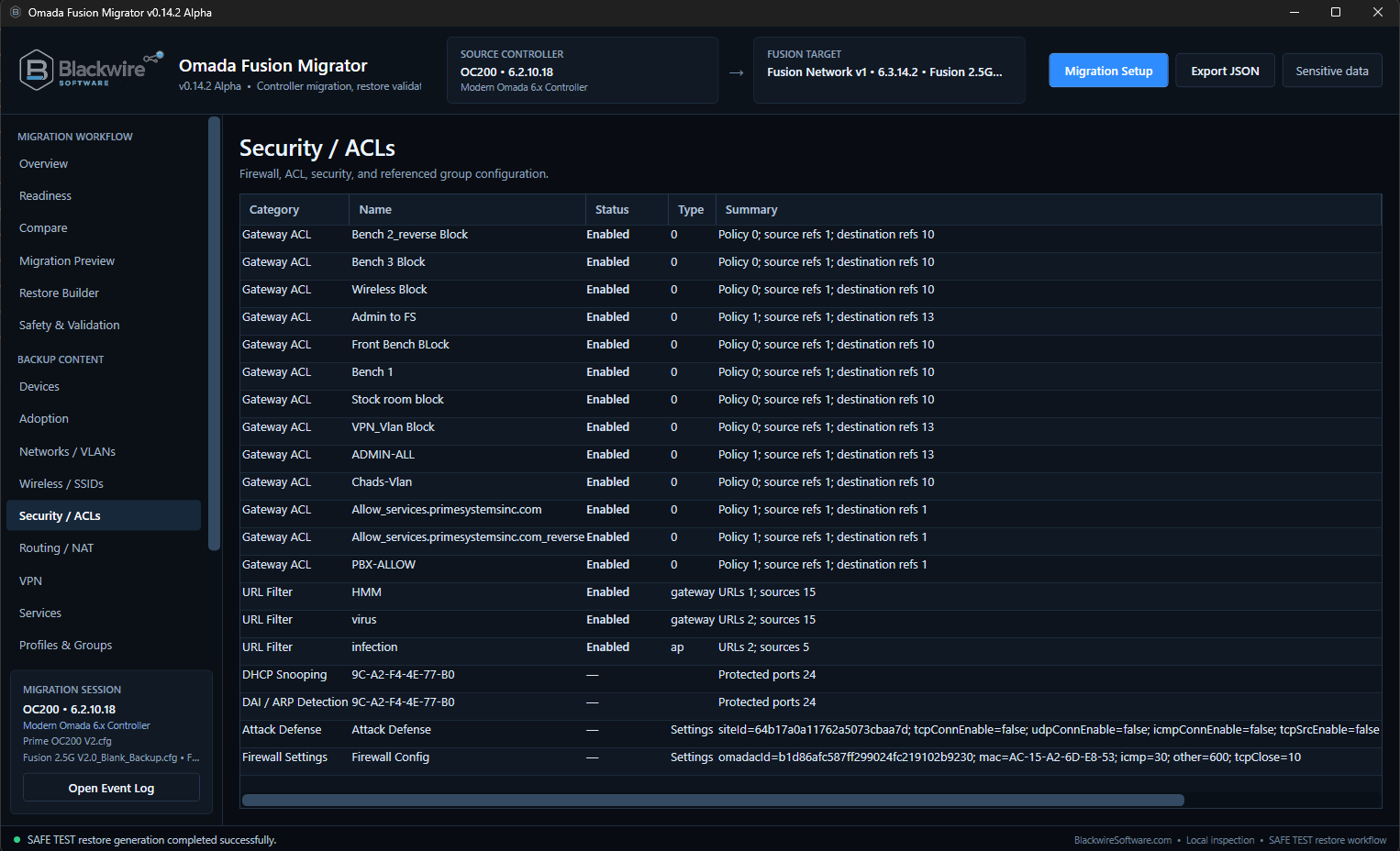

- ACLs and security configuration where a safe Fusion representation is known
- WAN and Multi-WAN mapping
- Port forwarding and NAT where validated
- DDNS

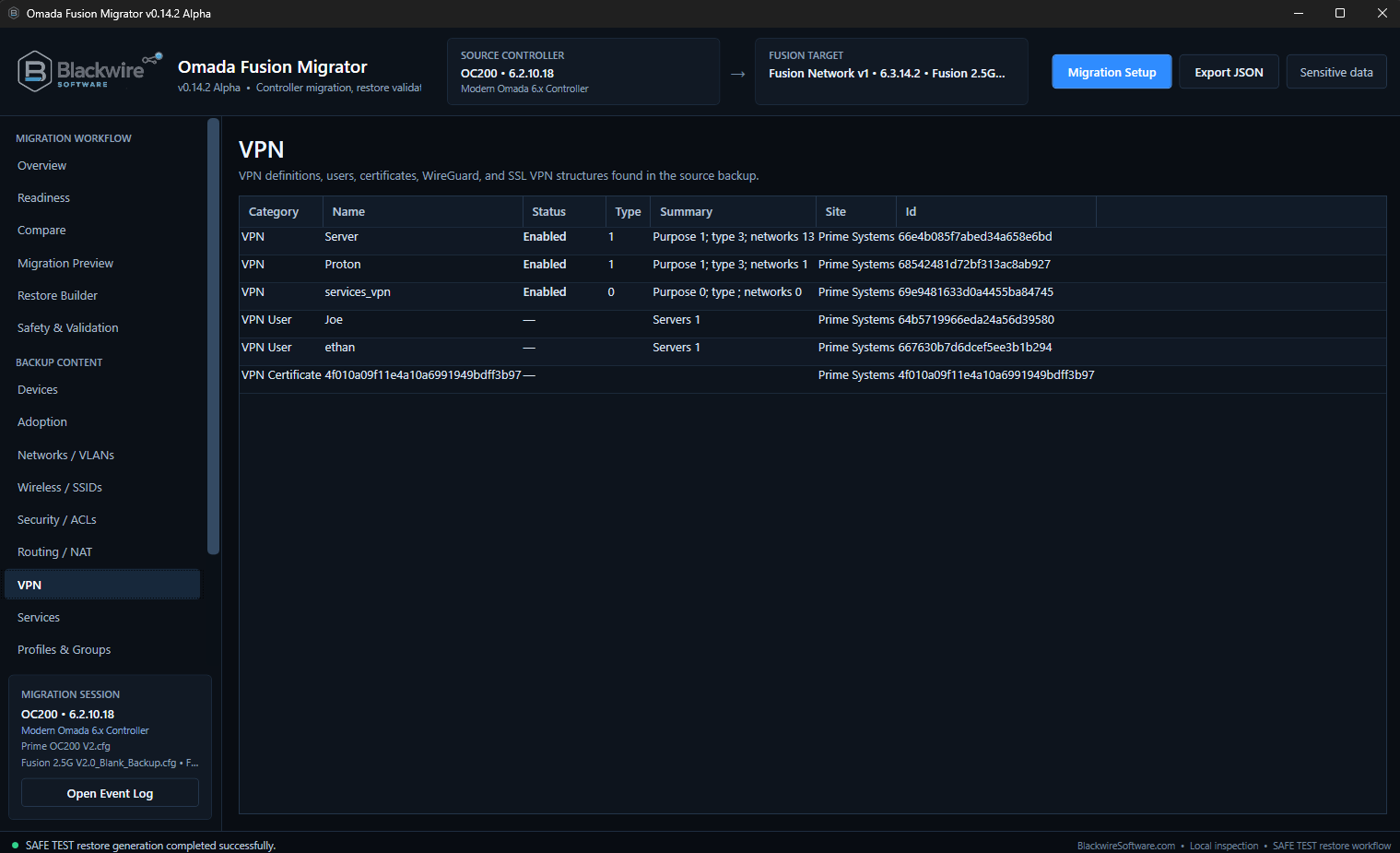

- VPN configuration
- VPN certificates and imported configuration material
- VPN users
- WireGuard where compatible
- Routing-related configuration where safely supported
- Controller and site configuration
- Destination-specific restore generation
- Post-generation verification
- Local-file workflows
- Supported file-server workflows
After the restore
Recovering the controller configuration does not automatically transfer AP and switch trust.
Physical testing has shown this same distinction across OC200 → Fusion, OC220 → Fusion, OC300 → Fusion, and Fusion V1 → Fusion V2 work.
Configuration can be recovered while device trust still belongs to the old controller.
In these tests, the network configuration could restore correctly while existing managed APs and switches initially reported that they were managed by another controller.
That points to the device/controller trust and adoption process, not a failed recovery of the network configuration.
Takeover happens after the restore.
The current development direction uses Omada's own adoption process so the replacement Fusion can establish its own device trust after the recovered configuration has been restored.
Fusion-to-Fusion proof testing has already moved test devices from a managed-by-another-controller state into configuring/connected state. Automated OC→Fusion takeover is still waiting on its dedicated physical validation before it is enabled generally.
Destination Fusion safety
The replacement Fusion stays the owner of its login and hardware identity.
That matters even more in a recovery job because the old controller may be gone and the replacement controller has to remain accessible after restore.
Use the login that belongs to the destination Fusion.
On the tested OC200, OC220, and OC300 → Fusion restores, the destination Fusion continued to use the local web-login credentials that were configured on that Fusion before the recovery.
The source OC controller local administrator is not transplanted as the Fusion web login. The Generate workflow makes the technician verify the destination login before generation so post-restore access is explicit.
Build against the Fusion that will actually receive the restore.
Testing has shown that Fusion hardware generations are not interchangeable at the backup level. A fresh backup from the exact destination Fusion gives the recovery the target-specific context it needs.
Blackwire protects destination-owned information such as gateway identity, controller and hardware identity, physical port identity, Fusion-specific capabilities, and the destination administrator/login state.
Generate workflow
Three checks before the recovery restore is saved.
The generation flow is built around problems that matter when rebuilding from backups: post-restore access, network staging, and the exact final artifact that will be applied to the replacement Fusion.

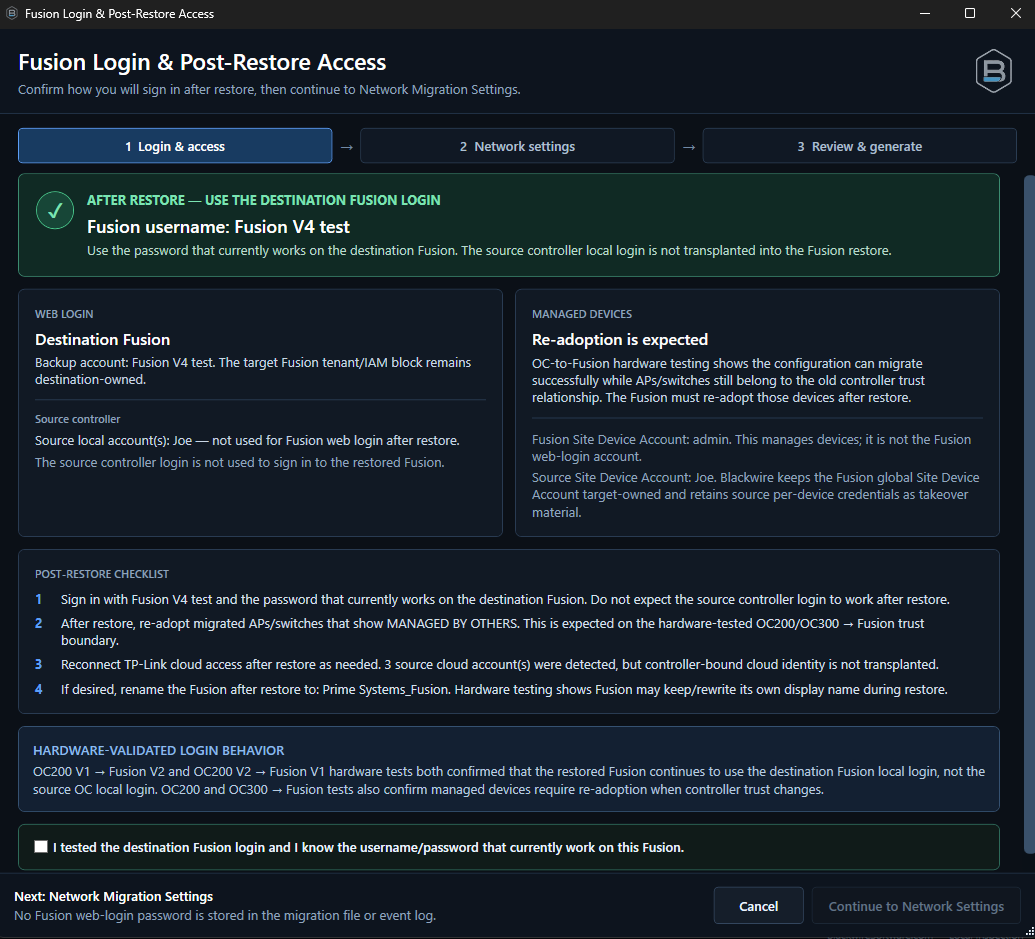

Login & Post-Restore Access
Confirm how the replacement Fusion will be accessed after restore and verify the target-owned login before continuing.

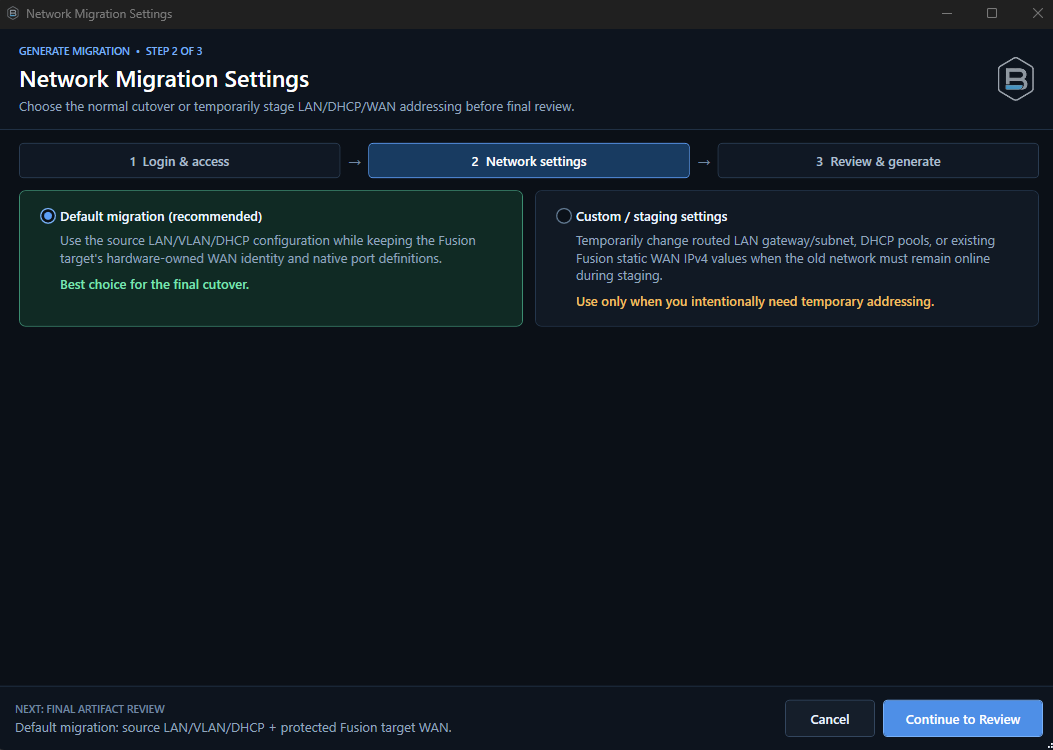

Network Migration Settings
Preserve the recovered addressing by default or intentionally stage temporary LAN, DHCP, or WAN settings when rebuilding around an existing live network.

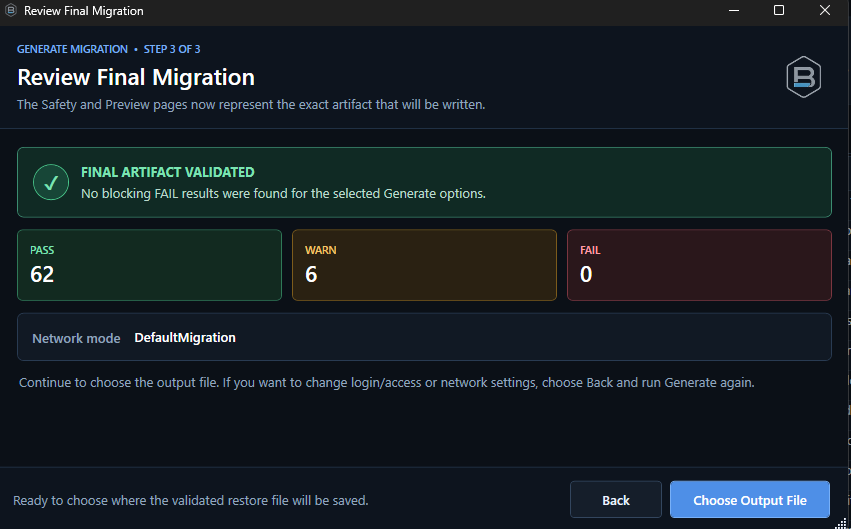

Review Final Recovery
Review the exact destination-specific artifact and its PASS, WARN, and FAIL results before choosing where the restore file will be saved.

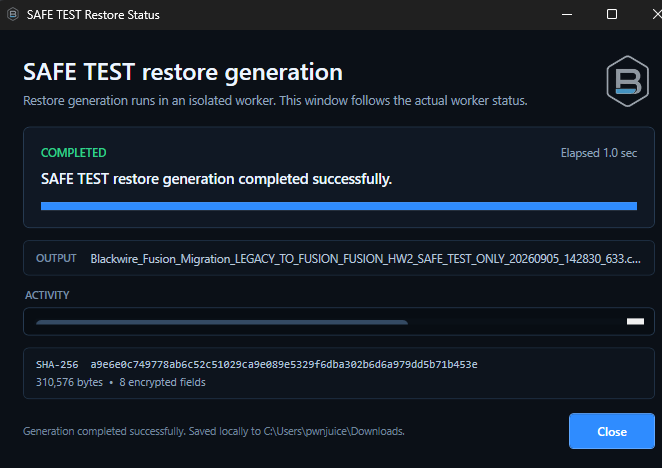

Choose the output only after validation.
The current flow keeps the final safety result visible until the technician explicitly moves on to save the generated restore.

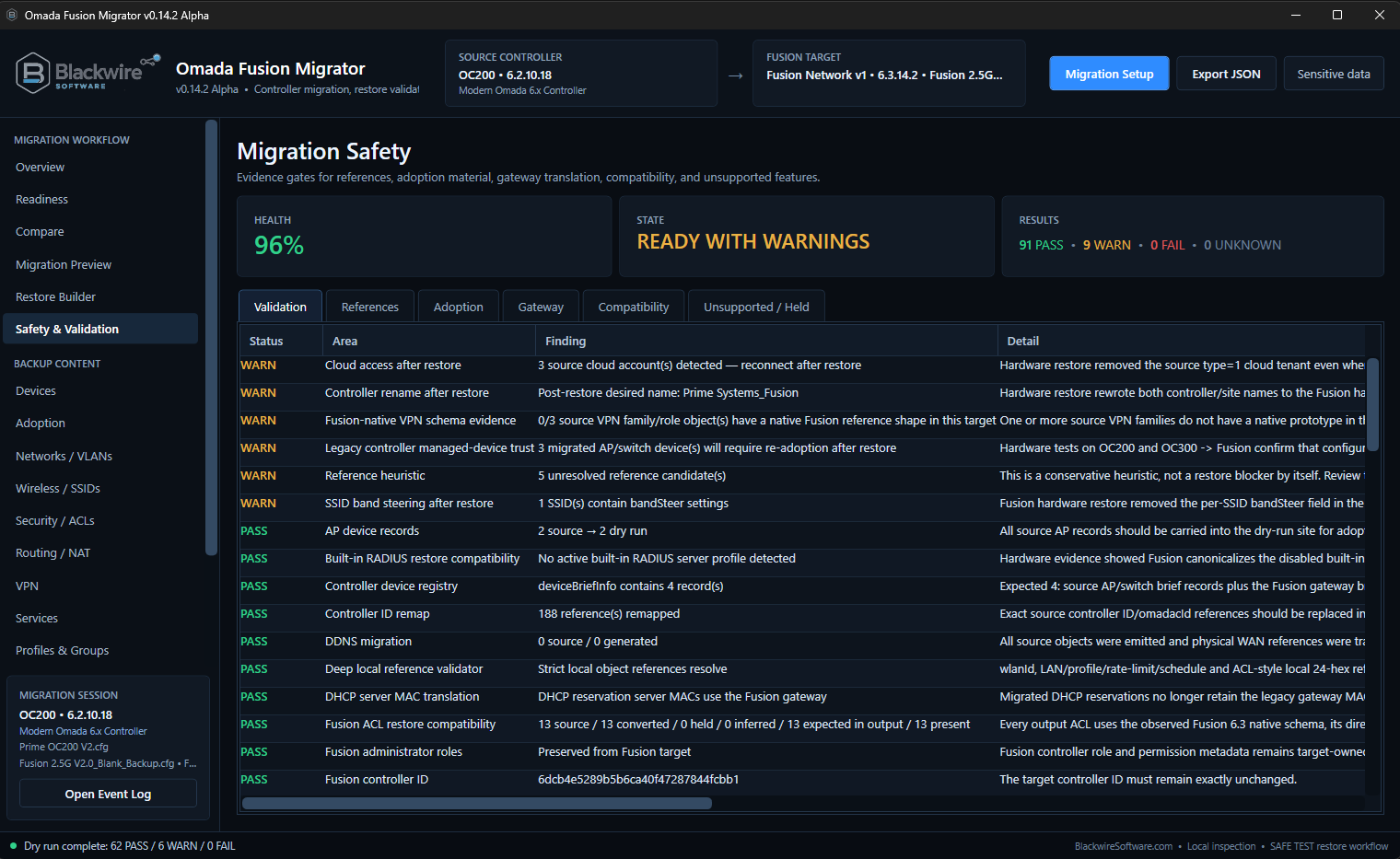

Safety and validation
PASS, WARN, and FAIL follow the recovery all the way to generation.
Recovery from a backup should not mean blindly forcing old configuration onto new hardware. The goal is to stop or flag the job when Blackwire sees something that should not be carried forward without review.
PASSThe tested part of the recovery has no blocking issue detected.
WARNSomething deserves technician attention or post-restore verification.
FAILBlackwire found something that should stop generation or restore until it is addressed.
- Exact source-backup and destination-backup verification
- Destination hardware-family checks
- Destination-owned identity protection
- Recovered reference validation
- Stronger ACL and VPN compatibility blocking
- Final-artifact validation
- Final recovery review before choosing the output file
- Protection against silently dropping unsupported configuration
Native Device Takeover
Recovery continues after the configuration is restored.
When the old controller is gone, a successful configuration restore can still leave APs and switches trusting the controller that used to manage them.
FUSION → FUSION PROOF TESTEDTest devices were detected, checked, and moved through the native Omada adoption process into configuring/connected state.
OC → FUSION VALIDATION NEXTThe same hardware behavior has now been observed on OC200, OC220, and OC300 recoveries, but automated OC→Fusion takeover still needs its dedicated physical validation.
MULTI-DEVICE WORKFLOWDevelopment is also covering multi-device takeover so technicians do not have to process every AP and switch one at a time.
What we're still testing
Recovery compatibility is being expanded without pretending every backup is ready.
Some of the remaining work is about additional controller and firmware combinations; some is about edge cases that show up specifically because the source controller is unavailable or the replacement hardware differs from the source.
- Automated native OC→Fusion managed-device takeover
- Additional OC200 hardware and firmware combinations
- Additional OC220 firmware and configuration combinations
- Additional OC300 → Fusion scenarios
- Fusion V2 → Fusion V1
- Downgrade and cross-version compatibility
- Unusual WAN and Multi-WAN layouts
- WAN-bound bandwidth-control rules
- Static-routing edge cases
- 1:1 NAT
- Disable NAT
- Additional VPN combinations
- ACL and security rules without a proven destination representation
- Controller-specific services
- Larger environments and larger managed-device counts
When the destination cannot safely represent something recovered from the source backup, the intended behavior is to warn, hold, or block it rather than silently drop it.
Backup and file access
Local files and the file-server workflows technicians already use.
A recovery job often starts with whatever backup is still available, not with a controller that is sitting online waiting for a migration request.
The current Alpha supports local files plus FTP, FTPS, SFTP, and SCP. Secure connection work has also been hardened around certificate and host verification during development.

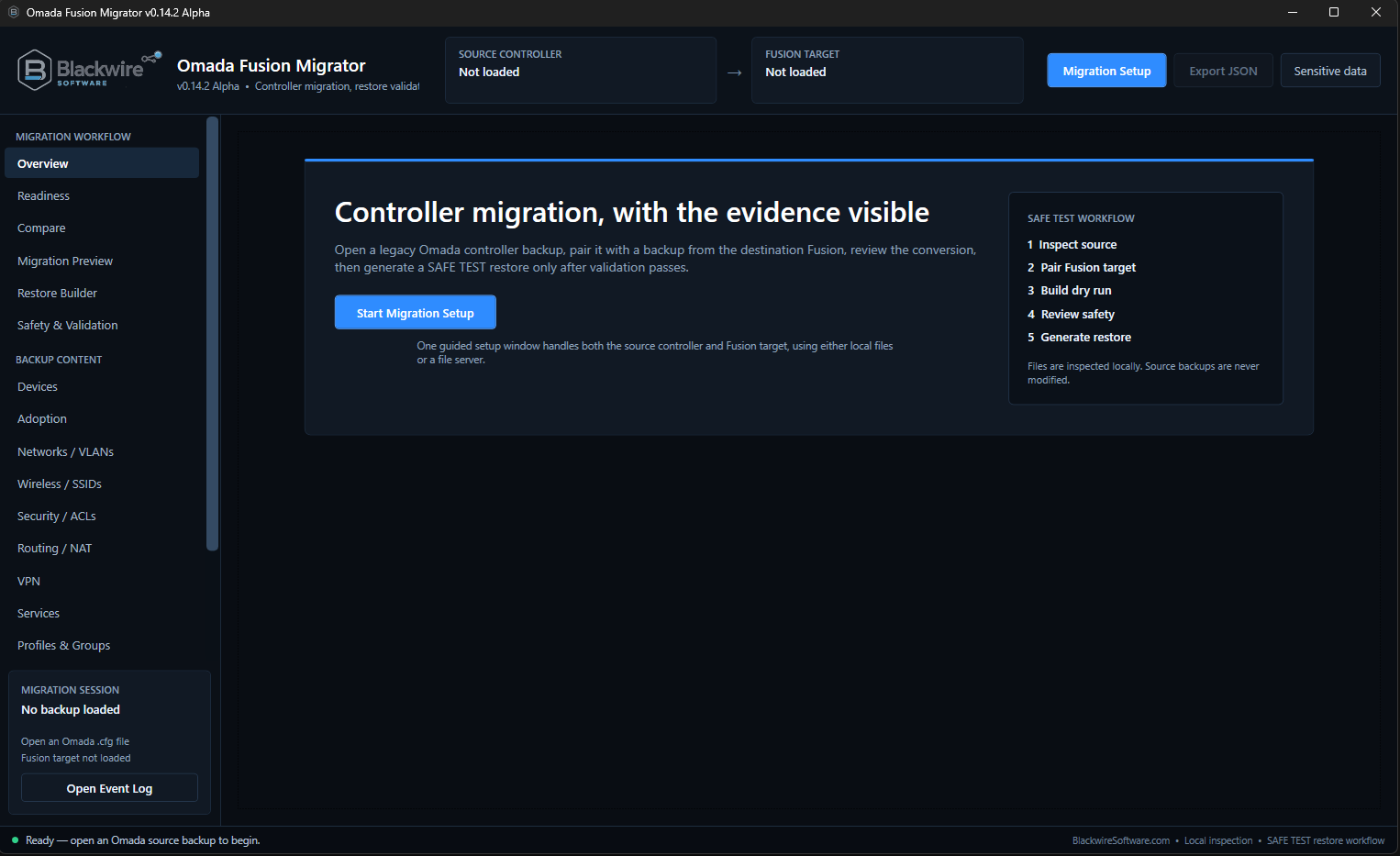

Current build screenshots
The screenshots on this page are from the current Late Alpha test build.
They show the offline/recovery workflow as it exists during active hardware testing. Labels, validation results, test environment names, and individual screens may still change before Beta.
Who this is for
- IT technicians recovering an Omada environment from backup
- MSPs taking over a network where the old controller is unavailable
- Network administrators replacing failed or retired controller hardware
- Experienced Omada users dealing with unsupported or incomplete native migration paths
- Businesses moving recovered controller configuration onto Fusion hardware
What the screenshots represent
These are development captures from real test recoveries and migrations. They show the current review, validation, generation, and post-restore workflow rather than polished release artwork.
The captions explain each screen from the technician's point of view without documenting the internal migration engine.
Development preview shown. Interface wording, compatibility rules, test data, and workflow details may change before Beta testing begins.
Late Alpha — Preparing for Beta Testing
The next stage is broader recovery testing, not a release announcement.
The project has gone through major workflow, compatibility, validation, and UI work. Real hardware restore testing is producing repeatable results across OC200, OC220, OC300, both Fusion 2.5G hardware families, and Fusion-to-Fusion recovery/migration.
The next development stage is broader Beta testing with more real-world backups, failed-controller replacement cases, inherited networks, controller/Fusion combinations, and post-restore device scenarios.
Beta has not started yet. There is no public download, pricing, checkout, or announced release date.
Apply to Beta TestLate Alpha / In Progress
